Sunday, February 26, 2017

Day 142: Sounboards and Hide Glue

The first order of business for this past week was to get those nameboard lever windows cleaned up. As you may recall, I decided early on (before I knew much about harpsichord traditions or building) to make this instrument in Craftsman (aka Arts & Crafts) style. This style typically calls for red or white oak dyed or fumed and set off with darker accent pieces. In my case, I decided to veneer the poplar case with astonishgly thin quarter sawn red oak veneer from Crosscut Hardwoods. The accent pieces will be made from some African blackwood I picked up from Gilmer Wood Company.

When I first started the instrument, I did not slow down to take the time and care to triple-check my cuts before making them. In the case of the nameboard, I got the dimensions of the board correct, yet I completely screwed up both the size and placement of the three lever windows that are cut into it. These are openings for three levers that will activate/deactivate the eight-foot, four-foot, and buff "stops". As I install the levers, I'll explain more about these.

Well, I finally got around to fixing my initial screwups by filling the middle hole with putty and scraping it down on both sides. This is not as bad as it could have been, primarily because I'm veneering any exposed poplar. In this case, the middle hole was off by several inches, so I was able to recut it in the proper place once the putty dried and was scraped flat. In cutting this hole, I also discovered none of them were the correct size (1" wide x 1/4" tall). Again, I'm not quite sure what I was thinking - or not thinking - when I cut them and I can tell you it would have been a damn sight easier to have cut them correctly before gluing in the nameboard.



The holes look a little rough, but I'll be re-veneering the front and also framing each one with a little African blackwood that will clean up the angularity of the holes while providing the Craftsman accenting I mentioned above.

Once I got the windows properly cut, I turned my attention to the soundboard. Now, Mr. Miller directs us in his eBook Most Excellent to make the stand after the registers, but I'm going to save that for dead last - even after I've made all of the jacks. So, I started by determining how to slice up some lovely spruce boards I purchased from Alan Ollivant some time ago. The boards are 1/2" thick and most are just over 4" with some over 5" wide. I decided that I'd like to maintain some consistency in board width and stuck with 4" as my primary measurement.

Once I picked through the boards, I started the process of measuring how many I would need to fit the width (just under 32") of the instrument, as well as accommodate the changing length caused by the bentside.



If you've read any of my other blog posts, you know by now that I harbor an enormous capacity for screwing things up (evidenced by the nameboard window description above). So, I double- and then triple-checked the lengths because messing up the beautiful, tight-grained Alan spruce would have been cause for moving on to another project.

Here's what I determined I would need:
  • 3 x 60"
  • 1 x 50"
  • 1 x 40"
  • 1 x 30"
  • 1 x 20"
  • 1 x 14"
Perhaps you can detect a pattern there? Given the fact I settled on 4" width for the planks, I'm probably using more of them than your typical builder, but that's what I've got to work with at this time. I would also very much like to switch to metric on the next build, but that's a story for another post. Regardless, I positioned the Laguna SUV and started cutting.



In my enthusiasm to get the boards cut, I was not as attentive to the time as I should have been. Time is important in this case because in order to resaw boards of this length, I needed to open the garage door (yeah, it's a tiny shop). After the second cut, I happened to glance at the clock and notice it was approaching 8:30 p.m., so I decided to defer the final cuts until the next day. Arousing the ire of neighbors is not part of my game plan.


As you can see, the game plan eventually worked out fine. Following Mr. Miller's and Owen Daly's advice, I resawed the boards as close to 1/4" thickness as I could, given the fact the boards were 1/2" and the saw blade, though quite thin, cut into that 1/4" a bit on either side. After jointing, I'll be taking the soundboard down to 1/8" (3mm) and thinner in some places, so I'm all set. The final step was to cut the planks to length, which I did with a hand saw.

From time to time, I do something that amazes and, frankly, confounds me. A couple of years ago, I found a completely rusted out Delta 6" jointer on Craigslist and picked it up for $80. I spent considerable time and effort restoring the thing and even found a factory mobile stand for it for only $40. It sat in my shop for the better part of two years, so, in my infinite wisdom, I decided to sell it. And then I needed it the very next day. It still rankles.

Given my poor choices, I'm going to take the soundboard planks to Random Roger Green's amazing shop to use his monster Powermatic/helical blade jointer to whip them into shape. I'll probably end up gluing them there, as well, but I'm not 100% sure about that. What I am sure of is that they're wrapped up and ready for the trip to Random's domain.


When I joint the boards, I'm going to use good, old-fashioned hot hide glue. This is not something I've ever done, but I do want to use the stuff as I build more instruments. Owen Daly has been very helpful in this regard as I've watched him glue up instruments over the last couple of years. In fact, he was kind enough to sell me a couple of bags of 192-gram strength glue chips for my own purposes. Gram strength determines a few things, not the least of which is "open time" - the amount of time you have to glue something up before the glue becomes too tacky - and the ultimate strength of the joint you're gluing (more on this later).

True, you can purchase hide glue in a couple of ready-to-use forms such as Titebond Liquid Hide Glue or Old Brown Hide Glue, both of which use a chemical treatment (urea?) to keep it liquid, or close to it, at room temperature. Both of these work because hide glue reaches its ultimate effective holding power when it evaporates off the water that keeps it in its liquid state.

There are two reasons I decided to go with cooking my own hide glue, rather than purchasing Titebond or Old Brown: 1) The two are rather expensive for my tastes; since I'm the client on the current instrument, I'm also a bit cost-sensitive and 2) I want to control the liquidity/open time of the glue myself. When Owen sold me the glue chips, he also gave me a small container of urea pellets, which can be used sparingly to increase the glue's open time, if necessary.

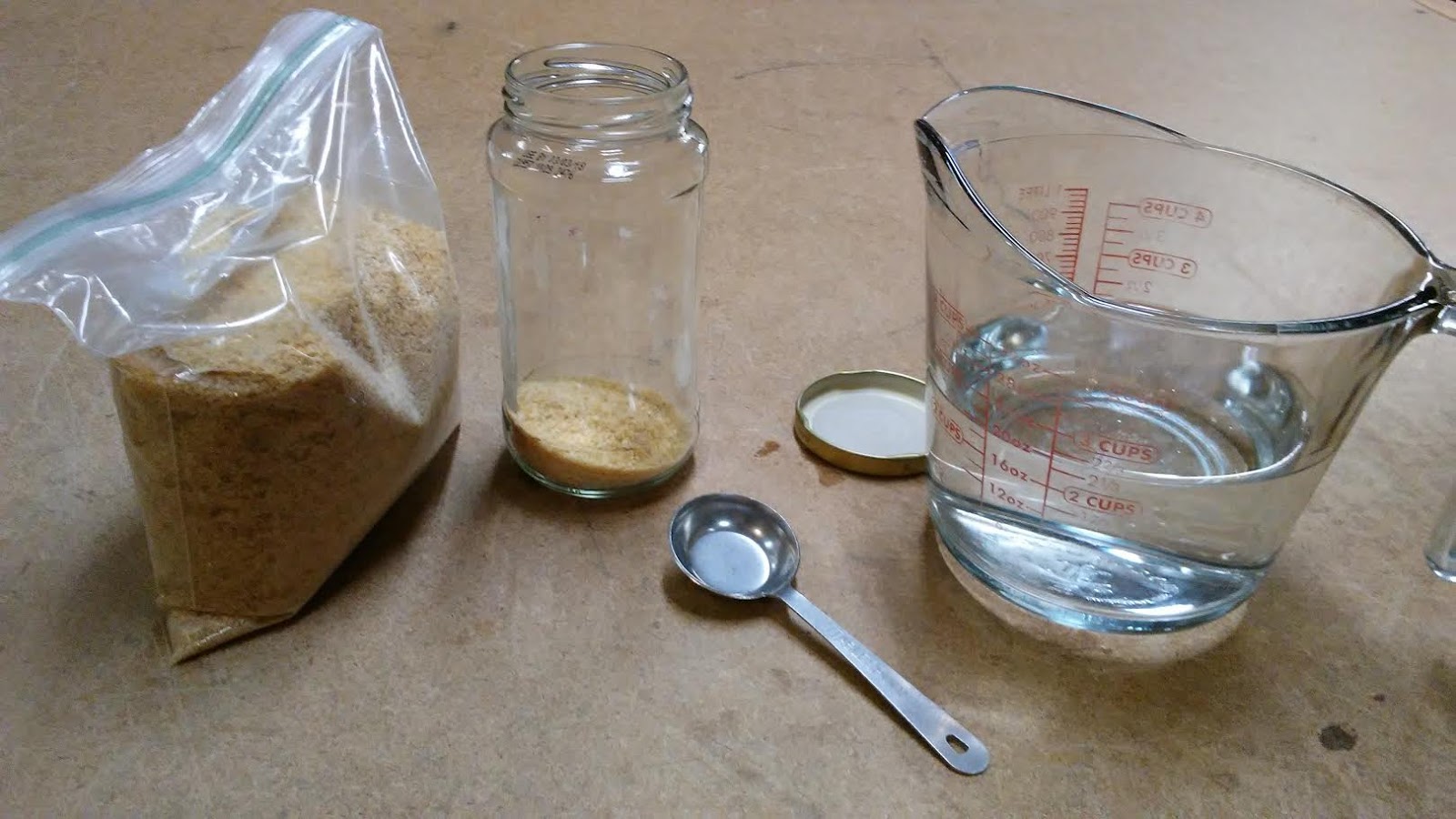

The first step in cooking the glue is to rehydrate it by putting a little into a container with some water in a 2:1 ratio of water:glue chips. Some say to soak it for 10 minutes, others say overnight. Given my time constraints, I went ahead and left it sitting in the shop refrigerator overnight.

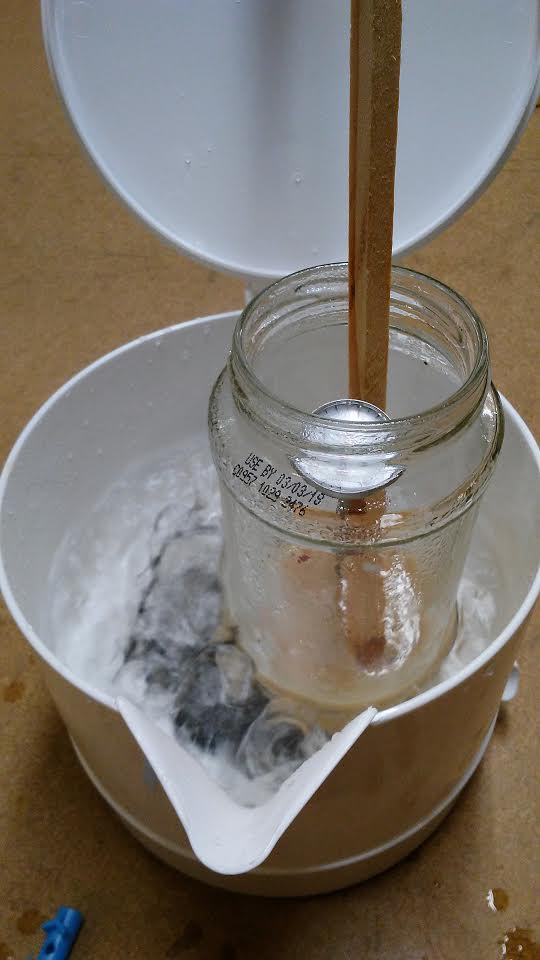

Rather than purchase one or more $135 Hold Heet Glue Pots, I decided to follow my friend, Jan van Capelle's (The Dutch Luthier), advice and pick up an inexpensive teapot thingy (around $15) to create a double boiler for cooking up the glue. The key is to bring the glue up to 145 degrees to properly cook it and prepare it for use.

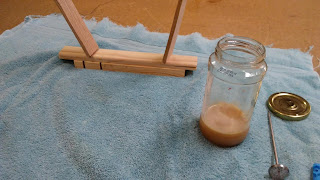

I then tested it on some scrap and completely forgot that sizing is a good first step for using hide glue. Sizing is the act of putting some glue, typically diluted in a 10:1 ratio of water:glue, one or more times on your project pieces and allowing the wood fibers to soak up these initial coats. Hide glue is the only glue that will glue to itself. The modern plastics will not do this. Hide glue also allows for a reversible joint simply by adding heat and moisture to it. In my case, I'll remember not to put the instrument in a hot bath.


Because I neglected to first size the joint, my test was something of an epic fail. This is not a bad thing because it reminded me to size and that hide glue takes a very long time to fully set. This was a good lesson at the expense of, well, nothing, so I'm grateful to have been reminded.

The next step will be to re-veneer the front and veneer the back of the nameboard. This will be "fun" because I use 3m spray contact cement and that crap gets everywhere. The next photos you see will be the instrument with tarps and newspaper taped all over it. Ah...the joys of not knowing what I was doing early on (not that I really do now, right?).

Until next time...

Monday, February 20, 2017

Day 141: Registers Fitted

As you probably know from my last post, I've been in the shop more lately working on the upper and lower registers. These structures are guides for the jacks (the vertical popsicle-stick-like pieces that hold the plectra) and I found they needed to be trimmed to accommodate their horizontal movement when activating and deactivating the four-foot and eight-foot ranks of strings (more on this later). I cut 10-degree bevels into the bottoms of the upper registers before I "closed the comb" and, this week, cut similar bevels into both the top and bottom of the lower guides.


Once I complete all of them, I glued strips to each side using a jig I had originally constructed to join bookmatched guitar tops and backs.


The jig simultaneously pulls in from the sides (hence the larger pieces of plywood in the photo above) while also pushing down on the top of the pieces being glued. The wedges are the key to this operation.



After a couple of hours of drying, I removed the wedges. I had roped this one up in a funky way, so I needed to push the wedges in farther than usual. Hey, it's been a while since I've used the thing, okay? Regardless, I ended up with a nicely glued lower register.


You can see a pencil line at the bottom of the photo above - this is where I cut the thing to length (width?) before fitting it into the case. I also ended up needing to trim the width and height a fraction, so I went to work on the Roubo with an old Stanley Bailey No. 4.



Once I got it shaved down, I snugged it into the case and it fit just fine.


Then, I threw the uppers back in...


And stuck a piece of beech I'll be using the make all of the jacks through the upper and lower and it slid through without a hitch, resting nicely on the key below.


At this point, all is well. The next step will be to cut the new window in the nameboard (yeah, the one I screwed up a while back) and make the existing ones a little larger. Now that things are progressing nicely once again, I decided to take a baby picture before proceeding with next steps.

Baby Picture

Until next time...

Sunday, February 5, 2017

Day 140: More Register Work

The last couple of days have seen me finish the second upper register and start work on the lower register. Because I had done most of the work on the upper before the weekend, I was able to "close the comb" by gluing it up using the go-bar deck.



As I glued them, I held them in place with frog tape (the green stuff in the photo above), an old luthier's trick. It was nice to look at the finished product and think about moving on to cutting the parts for the lower register.

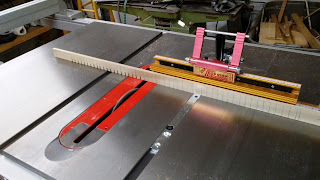

The first step was to line up the slots with those already existing in both upper registers. As you can see, the lower is made from a single piece and requires no holes to be drilled.




Now that the slots are completed, I'll trim a little off on the bottom of each slot to act as relief angles, much as I did with the tops. Then, I just need to "close the combs" by gluing all of the pieces together, trim it to length, and Bob's your uncle (I don't really know what that means, it just sounded appropriate).

Until next time...
